SL-DP Our chemical cylinder platform scale

SILVERLAKE CHINA-made stationary floor scales are manufactured to durably last under heavy-duty industrial use. A wide range of floor scale types are available for different weighing applications ranging from the lighter-grade Enforcer series with smooth decks , SL-DF economical floor scales with up to 10,000 lb x 2 lb capacities (stocked for immediate shipment), SL-DH series for extra heavy-duty rugged platforms up to 12 ft x 10 ft and 20,000 lb capacities, SL-DH series ideal for pit installations flush-mounted with the floor surface, and we have series with gas-assisted lifting cylinders for easy access to internal components for wash-down cleaning. And SILVERLAKE offers A large selection of ramps, pit frames, weight indicators, and Wi-Fi options are also available.

If you run a warehouse, freight company, or any other type of industrial business, reliable floor scales or truck scales are essential tools in helping you keep accurate records of your loads and providing reliable services to your customers. At Floor Scales Direct, we offer a wide selection of weighing products and floor scales for sale. We’re sure that one or more of our floor scales is just right for your particular application. Each floor scale we offer is guaranteed to be heavy-duty tough, and provide the accuracy in measurement you demand and expect each and every time they are used. Our floor scales for sale are ideal for a variety of applications and you’ll find:

1.Warehouse shipping & receiving platform scales

2.Pallet weighing products

3.Drum weighing products

4.Livestock weight scales

5.And industrial scales for a wide variety of other industrial jobs

And customer service is our first priority here. We offer next business day shipping on many of our floor scale options to minimize your down time and keep your operations running smoothly and efficiently, and our prices simply can't be beat. You’ll also find a number of resources here on the site—our knowledge base section and SILVERLAKE can help you choose among the many options and learn more about the products you’re considering. And be sure to check out specials and current promotions.

  • Overview
  • Specifications
  • Accessories
  • Literature

SL-DP Chemical Cylinder Platform Scale

Description

Our chemical cylinder scale is designed with multilayer material, helping to weigh cylinder storage volume chlorine and liquid ammonia, etc. across chemical industry.

DP Series chemical cylinder scale is coated by multi-layer anti-corrosive material to provide strong performance of corrosion resistance in chemical industry. With the size of 0.8x1.2m, it’s capacity is respectively 1t 2t and 3t. Please note that relative humidity should be less than or equal to 95% under the condition of no moisture condensation when using the scale.


Technical Data

Accuracy Grade
Weighing Range n1,0000kg~30,000kg
Working TemperatrureWeighing Indicator-20 to +40C
Scale and Load cell-30 to +65C
Power SupplySL-T800100-240VAC 50,60Hz Wide voltaga input,Nickel metal hydride rechargeable batteries(option)
SL-A131PL100-240VAC 50/60Hz Wide voltaga input/Nickel metal hydride rechargeable batteries(option)
Protective GradeScale Body IP65 Indicator SL-AS135 IP65,Indicator SL-AS131-SS IP65
Load cellHM8C(HY-8-102)
Relative Humidity≤95%(Free of Moisture Condensation)


Specifications

ModelDimension
Capacity
1000kg2000Kg3000Kg4000kg
SL-DG15201500x2000OKOKOKOK
Divsion e=(g)0.5Kg1Kg1Kg1Kg


LOADE CELL HM8C

1.HM8C load cells are available in the capacities 0.5t to 5t.
2.Alloy steel,hermetically welded,oil-proof,waterproof and anti-
corrosion, suitable for all kinds of environments.
3.Single shear beam,easy for installation,suitable for
electronic platform scales,hopper scales and other electronic
weighing devices.
4.safe and anti-explosive product,can be used
in atrocious environment and hazardous areas.

HM8C LOAD CELL FIT FOR MANY TYPE PLATFOR SCALE

Features
1.Capacity:0.5t to 5t.
2.High accuracy.
3.Alloy steel construction.
4.Low profile.

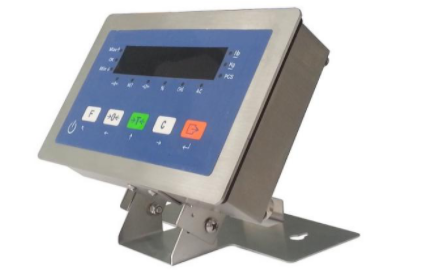

WEIGHING  INDICATOR




WEIGHING INDICATOR SL-800

1. 6-Segment 0.8 LED Dispaly

2.Dispaly weight, adding up package and adding up weight

3.High resolution, Maximum 100,000 division, 6000e resolution approval


Weighing Function:

1. Count

2. top and bottom limitation

3.Standard weight percent

4.Peak Holding

5.Accumulate

6.Animal Weighing

7.Static Checking weight

Provide 2 Serial, 1RS232,1RS232/485 Serial communication

Continuously weight data output

Serial Print

3 Outputs(Relay)

IP67

Pole Bracket mount and Wall Bracket moun
