SILVERLAKE CHINA-made stationary floor scales are manufactured to durably last under heavy-duty industrial use. A wide range of floor scale types are available for different weighing applications ranging from the lighter-grade Enforcer series with smooth decks , SL-DF economical floor scales with up to 10,000 lb x 2 lb capacities (stocked for immediate shipment), SL-DH series for extra heavy-duty rugged platforms up to 12 ft x 10 ft and 20,000 lb capacities, SL-DH series ideal for pit installations flush-mounted with the floor surface, and we have series with gas-assisted lifting cylinders for easy access to internal components for wash-down cleaning. And SILVERLAKE offers A large selection of ramps, pit frames, weight indicators, and Wi-Fi options are also available.
If you run a warehouse, freight company, or any other type of industrial business, reliable floor scales or truck scales are essential tools in helping you keep accurate records of your loads and providing reliable services to your customers. At Floor Scales Direct, we offer a wide selection of weighing products and floor scales for sale. We’re sure that one or more of our floor scales is just right for your particular application. Each floor scale we offer is guaranteed to be heavy-duty tough, and provide the accuracy in measurement you demand and expect each and every time they are used. Our floor scales for sale are ideal for a variety of applications and you’ll find:
1.Warehouse shipping & receiving platform scales
2.Pallet weighing products
3.Drum weighing products
4.Livestock weight scales
5.And industrial scales for a wide variety of other industrial jobs
And customer service is our first priority here. We offer next business day shipping on many of our floor scale options to minimize your down time and keep your operations running smoothly and efficiently, and our prices simply can't be beat. You’ll also find a number of resources here on the site—our knowledge base section and SILVERLAKE can help you choose among the many options and learn more about the products you’re considering. And be sure to check out specials and current promotions.
- Overview
- Specifications
- Accessories
- Literature
SL-DU U Type Platform Scale
Description
U type construction, unique designed knob and rolling wheels ensure the convenience for carrying and moving in occasions with a mass of pallets. Products made of mild steel are available for all working environments.
The portable U-type scale, with the model of DU12584 or DU1200, is 115mm in height, and it’s maximum weighing capacity is 3000kg. this weighing equipment can finish weighing assisted by the handing of hydraulic forklift. Place the scale on the ground, and then put the pallet with goods loaded on the top of the u-type scale by the forklift, so that the weight of object can be easily achieved. Compared with electronic floor scale coming in large volume and large area, and sometimes had to be installed within the prepared foundation pit, the u-type scale can accomplish the same weighing operation with the advantages of light weight, movable structure, small volume and area.
, DT/DTS1200, and their beam length is 0.8m,1m and 1.2m respectively, the scale can weigh up to 3000kg.
| Accuracy Grade | Ⅲ | |
| Weighing Range n | 3,000kg TO 5,000kg | |
| Height | 115mm | |
| Working Temperatrure | Weighing Indicator | -20 TO +40C |
| Scale and Load cell | -30 TO +65℃ | |
| Power Supply | SL-T800 | 100-240VAC 50,60Hz Wide voltaga input,Nickel metal hydride rechargeable batteries(option) |
| SL-AS131PL | 100-240VAC 50,60Hz Wide voltaga input,Nickel metal hydride rechargeable batteries(option) | |
| Protective Grade | Scale Body IP65 Indicator SL-AS135 IP65,Indicator SL-AS131-SS IP65 | |
| Load cell | H8C | |
| Relative Humidity | above 95 (Free of Moisture Condensation) | |
| Model | Dimension(mm) | Capacity | ||
| 1000kg | 2000Kg | 3000Kg | ||
| SL-DU12584 | 840x1250 | ok | ok | ok |
| SL-DU1200 | 760x1200 | ok | ok | ok |
| Divsion e=(g) | 0.5Kg | 1Kg | 1Kg | |
LOADE CELL H8C
H8C load cells are available in the capacities 1Klb
to 20Klb and 0.5t to 10t.
Alloy steel,sealed by adhesive inside,oil-proof,waterproof
and anti-corrosion, suitable for all kinds of environment.
Single shear beam, easy for installation,suitable for
electronic platform scales,hopper scales and other electronic
weighing devices.
Safe and anti-explosive product,can be used in
atrocious environment and hazardous areas.
Features
Capacity:1Klb to 20Klb and 0.5t to 10t.
High accuracy.
Alloy steel construction.
Low profile.
With OIML approval.
With NTEP approval.

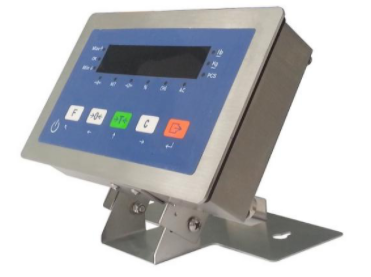

WEIGHING INDICATOR
WEIGHING INDICATOR SL-800
1. 6-Segment 0.8 LED Dispaly
2.Dispaly weight, adding up package and adding up weight
3.High resolution, Maximum 100,000 division, 6000e resolution approval
Weighing Function:
1. Count
2. top and bottom limitation
3.Standard weight percent
4.Peak Holding
5.Accumulate
6.Animal Weighing
7.Static Checking weight
Provide 2 Serial, 1RS232,1RS232/485 Serial communication
Continuously weight data output
Serial Print
3 Outputs(Relay)
IP67
Pole Bracket mount and Wall Bracket mount
