Our portable pallet scale provides a simple and cost-effective solution to weighing in a variety of locations across the production plant. Lightweight and easily maneuverable, you simply move the unit to where you need to weigh. Available with a choice of indicator to simplify counting, filling, check weighing and recipe applications

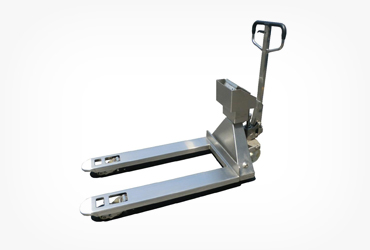

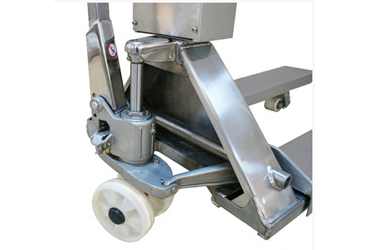

SL-TPC portable pallet scale is specially designed to weigh in warehouses, workshops, goods yards, bazaars and other occasions. Similar to the common forklift in appearance, our pallet scale has an additional indicator to weigh and read the weighing results. It’s fork length is 1150mm. It features the fork height of 195mm or 205mm, and a minimum fork height of 76mm or 85mm, as well as a largest capacity of 2t. The scales are all produced in strict accordance with ISO9001 and ISO18000.
Accuracy Grade | Ⅲ | |
Weighing Range | 1t~2t | |
Height | 115mm | |
Working Temperatrure | Weighing Indicator | -20to+40C |
Scale and Load cell | -30to+65C | |
Power Supply | SL-T800 | 100-240VAC 50/60Hz input/Nickel metal hydride rechargeable batteries(option) |
SL-131PL | 100-240VAC 50/60Hz input/Nickel metal hydride rechargeable batteries(option) | |
Protective Grade | Scale Body IP65 Indicator SL-AS135 IP65,Indicator SL-AS131-SS IP65 | |
Load cell | H8C4 | |
Relative Humidity | ≤95%(Free of Moisture Condensation) |
Model | Max.Fork Height(mm) | Min Fork Height(mm) | Dia. Of Big wheel(mm) | Dia. Of Big wheel(mm) | Max.Width (mm) | Fork Length (mm) | Load cell | Capacity | Devision (kg) |
TPC | 195/205 | 76/85 | 160 | 70 | 540/570/705 | 150 | H8C4 | 1000/2000 | 0.5/1 |
