SL-II I beams Modular Weighbridge
Beams of weighbridge Be used the I Beams steel ,have the high strength
Eevery of modular have the same size,modular of weighbridge can exchange each other.
H beams Module Structure

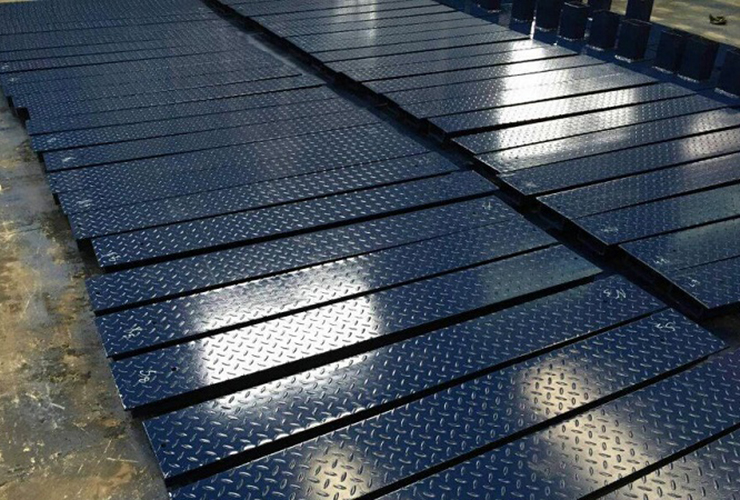

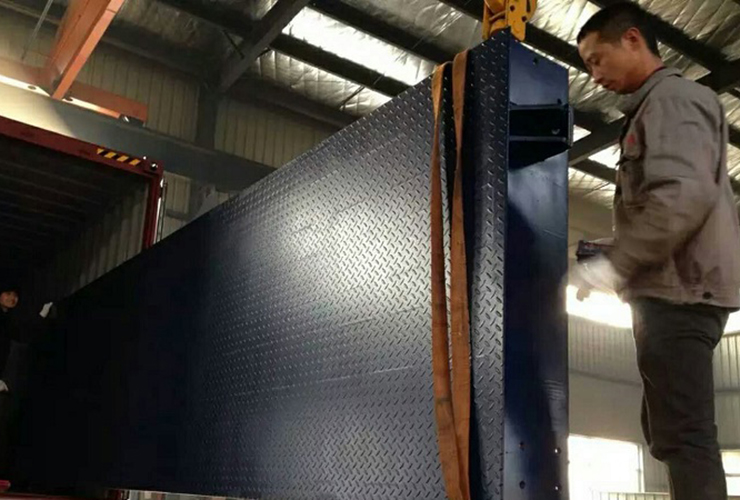

Stronger H beams structure, with checked plate. Modules design for easy loading in truck or container.
Easy Installation
Easy installation with labor work saving.
Side Guide
High 500×200 H beams on 2 sides
PLATFORM
Heavy duty with H beams and check plate. Smart design with easy installation. Modules design for container/truck load. 3m or 3.4m width. 16m, 18m, 21m, 24m length. Epoxy painting for long time use.
LOAD CELL
OIML approved BM14G zemic column load cell.and hbm C16A load cell Stainless steel material . Hermetically sealed, IP68 .Optional HM9B model.
INDICATOR
Stainless steel housing, IP65 protection. 240×128 dot matrix LCD. High accuracy up to 10,000e. Anti-vibration and anti-surge design. Easy to operation wtith big LCD display. Multi interface: RS232, RS485, Erthernet, etc. Super anti-interference technology: Analog or digital working mode.
- Overview
- Specifications
- Accessories
- Literature

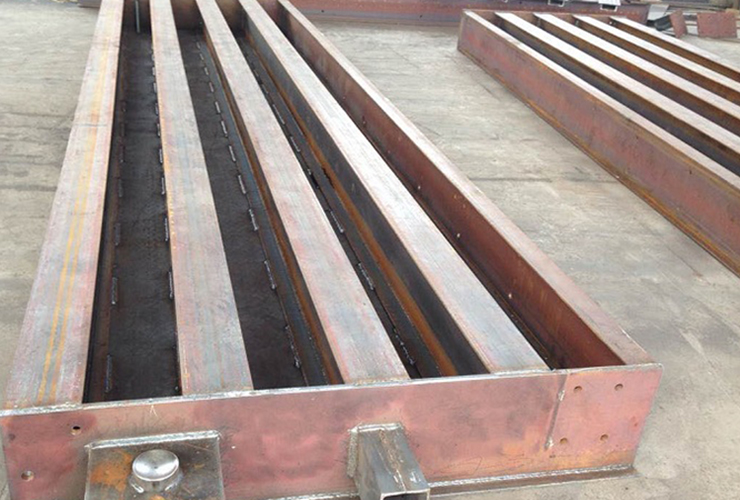

1.Design 8 pieces i beam design
2.I beam Height design accorrding the capacity of weighbridge
3.Pre camber machine to making platform have a high curves in Middle of platform
4.Auto welding machine to ensure welding is smooth and good strength
5.Shot blasting clean all dirty before painting
1. Width with 3m/3.2m/3.4m/3.5m/4m
2. Lenth with 7m/8m/9m/10m/12m/15m/16m/18m/20m/21m/22m/24m/36m
3. Capacity:10ton/20ton/30ton/40ton/50ton/60ton/80ton/100ton/120ton/150ton/200ton
4.Application:Weighing steel,concrete,mining,recyclying,chemical,grain etc industry
5. Certification: ISO9001, CE, OIML, NTEP
