SILVERLAKE DYNAMIC AXLE truck scale from 30t ,80t 100t to 200t
The Silverlake dynamic axle weighbridge is the most accurate in the world.
In transport and distribution, it maximises payload whilst avoiding axle or gross
overloads.
In waste and recycling, it also enables charging by weight without taking up
yard space.
In enforcement, it allows vehicles of all types to be weighed simply, easily
and quickly.
Silverlake is the only Dynamic Axle Weighbridge Approved for Public Use.
Systems are designed to your exact requirements using a wide range of options including
remote displays, external printers, custom software, computer links and automatic vehicle ID.
SILVERLAKE take care of the whole project including design, construction, calibration
and testing
Silverlake is one of the Chinese leading suppliers of weighing scales, systems and equipment.
We offer a wide range of industrial weighing systems and solutions, backed by an extensive service network across the entire China.
Part of a large corporate family, we market and service our products in over 20 countries
- Overview
- Specifications
- Accessories
- Literature
Weighs axles whilst in-motion
Designed for fast and accurate weighing, the Silverlake Axle Weighbridge weighs any vehicle up to 40,000kg per axle ‘in motion’ at speeds of up to 5 km/h.
Simple to install and relocate, this vehicle axle weigher is ideal for sites where space or access is limited.
Ensure safe loading of vehicles
Unevenly loaded vehicles can be as dangerous as overloaded vehicles making the vehicle harder to handle and puts undue pressure on tyres, steering and breaking. Silverlake axle weighing system allows the user to check both gross vehicle and axle weights to ensure the vehicle is safe and compliant when it leaves your premises.
Help to protect your operator’s licence
Avoid the risk of fines and prohibitions by ensuring that every vehicle leaving your site is accurately weighed and recorded.
Improves road safety and lifetime value
Installed worldwide for front line detection of overloaded vehicles, the Silverlake axle weighing system provides fast, reliable weight information to protect roads from excess damage and dramatically improve road safety.
Integrated with peripheral equipment to create a complete axle-weighing management system
Our axle weighing solution can be integrated with control barriers, traffic lights, signs, cameras and software to meet the most demanding application.
Ideal Axle Weighbridge for fleet operation management
Installed in many major fleet facilities to protect drivers and operators from the penalties of overloading, along with valuable fleet management information for stock control and security.
DYNAMIC AXLE truck scale Designed by SILVERLAKE, which mainly uses some situation to the weighing accuracy requirement not high, for example: Physical, Ultr-limitation examination, Stone weighing, etc., With small location, optional in static and dynamic

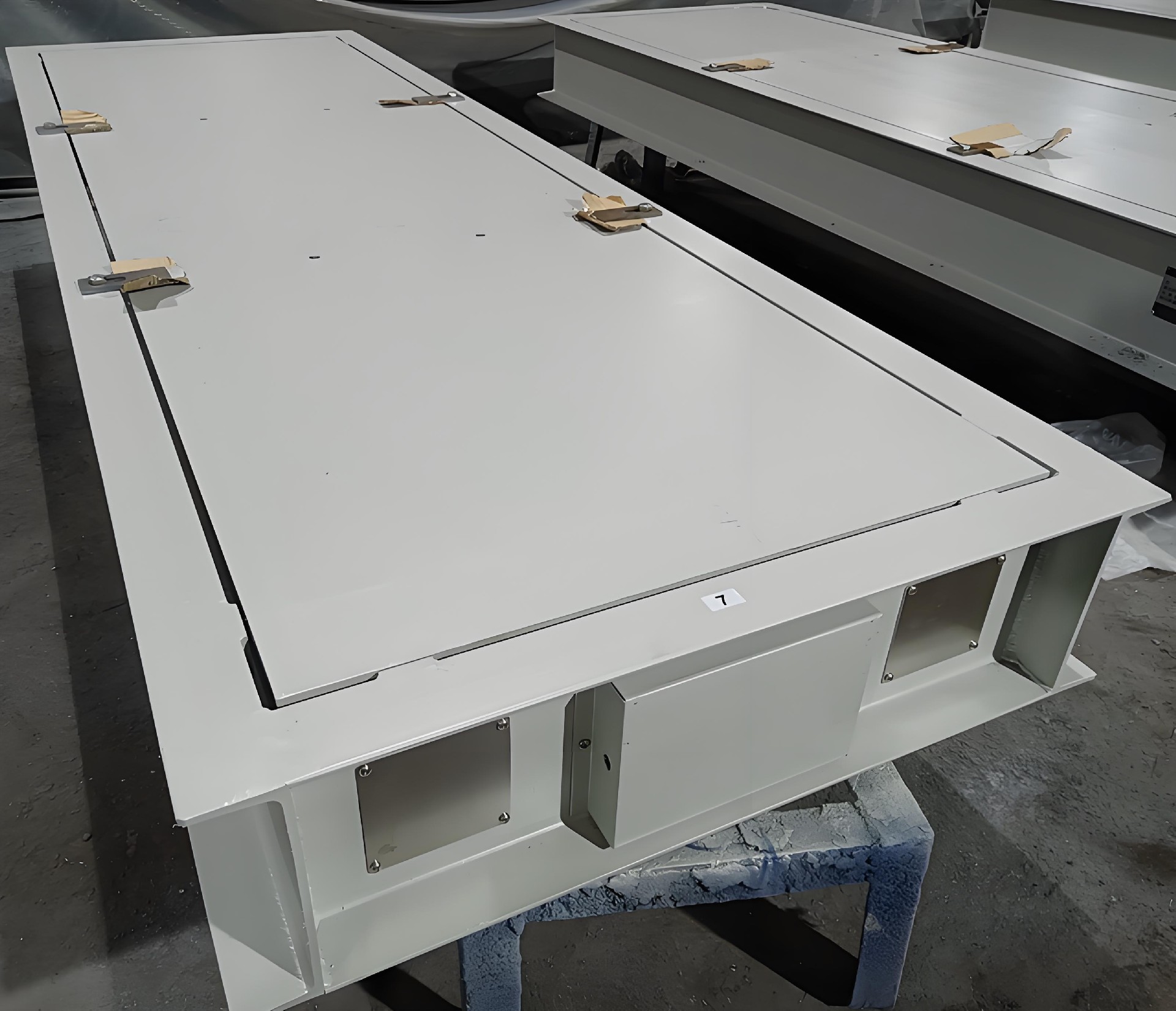

The product designs special cover plate, it is very convenient for installation, repairing, maintance. The indicator could shows axis weight and the whole vehicle weight.
A) U-shape beams
B) With bottom-border frame
C) Zemic HM9B load cells (alloy-steel, OIML approval)
D) With junction box and 15m cable
E) With HT9800-HD7P indicator (metal housing, dynamic and static, wit built-in mini printer)
F) With the strong pallet for transportation
Other specification
Speed: <=5km/h
Static accurancy: III class
Dynamic accuracy: exceed 1/200
Platform size: Single axle: 3.2mX0.8m(widthxlenght) Double axle: 3.2mX2.2m(widthxlenght)
Max. Cap.: Single axle:30T Double axle: 50T
Fixed axle weigher matchs with light curtain, loop, tire recognizer, photograph supervisory system and central control system could compose vehicle ultr-limitation examination system.
