Protable steel frame foundation Truck Scale

Protable foundation Truck Scale

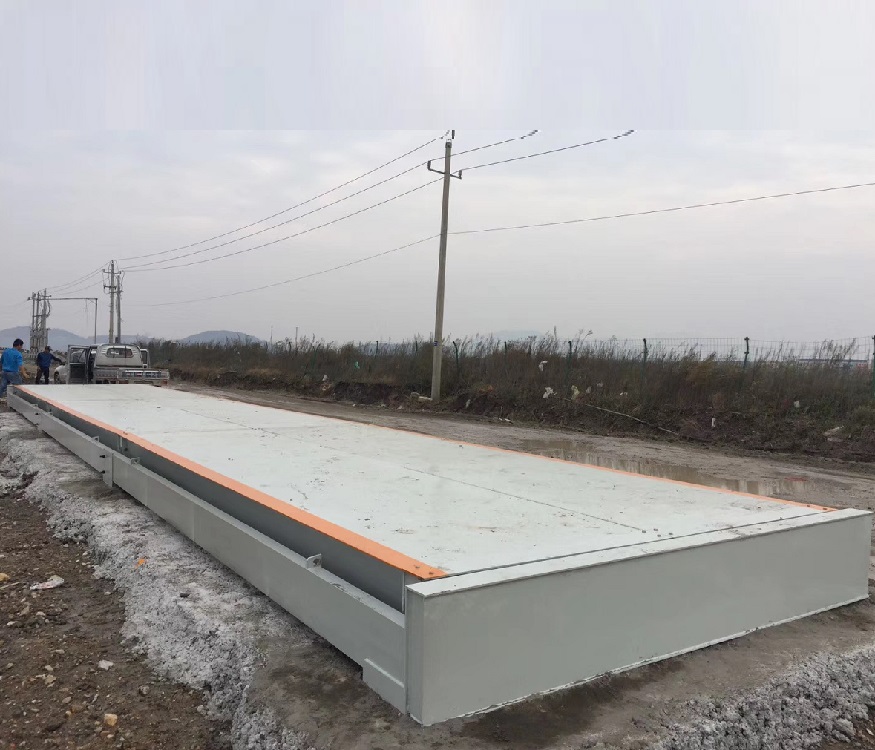

   Truck Scale with portable Foundations, in either steel or concrete with steel,this foundation of truck scale easy to install .

   If you want to move the scale need to other places, there is no additional expense for building a new foundation.

Just pick up the foundation and take it with you.

The pritable foundation can save time and labor from your next truck scale installation. Just unload, assemble and start weighing

Our portable truck scales are completely self-contained, have minimal foundation requirements and feature a low-profile design, making them easy to set up or move to wherever you need a portable vehicle weighing solution. There is no pit required, just a concrete or wood timbers base. All of our scales are legal for trade and are built with high quality steel. They are designed for long-lasting durability and superior performance. The scales feature easy access to the load cells, which makes future service calls quick and efficient. Our scales also come with man way access hatches for easy cleaning and come in custom lengths and widths. We also stock accessories such as portable scale shacks, programmable weigh indicators, traffic light control systems, and software. Manufactured by Accurate Scale and made in China

  • Overview
  • Specifications
  • Accessories
  • Literature

 For over 10 years, SILVER LAKE has been supplying quality portable truck scales to our customers. We have used our extensive knowledge to build what we believe to be the very good portable truck scale in the entire scale industry! Our portable truck scales are available in a wide range of standard and customized configurations to suit your specific application needs.  We offer portable truck scales in standard sizes, ranging between 10-14 ft wide and 10-100+ ft long!

Pre-fab foundation Truck scale installation in as little as 3 hours

The Pre-Fab foundation can cut time,labor, and headaches from your

next truck scale installation.Building atruck scale cant get

simpler. Unload,assemble, and start weighing.

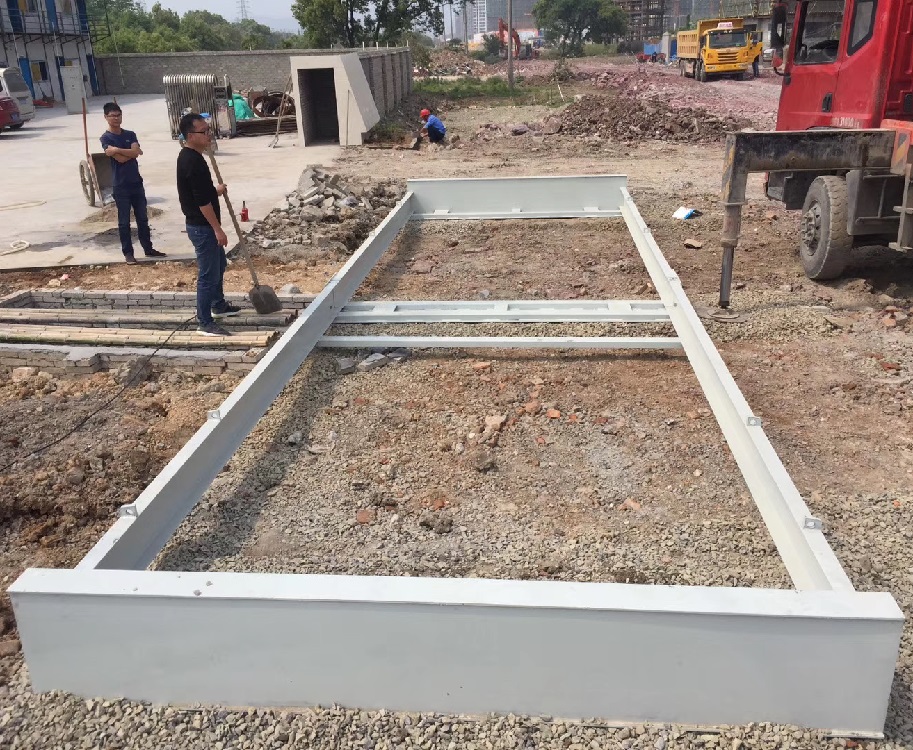

Foundation Assembly

  Place one of the end piers with thebulkhead beam,

at the end of the leveled and compacted site.

Use the convenient steel spacer angles to accurately position the

rest of the piers.

Backfill against the end bulkhead beams to stabilize the fully-assembled foundation.


Scale installation

  Use the convenient steel spacer angles to accurately position the rest of the piers.

Backfill against the end bulkhead beams to stabilize the fully-assemble

Specifications of

Model NO.:SCS-60T,80T-120T

Automation:Non Automation

The Weighing Method:Static Truck Scale

Scale Structure:U-Type Steel

Operating Environment:Non Explosion Proof Loadometer

Lightning Protection:With Lightning Protection

Safe Overload:150%F.S

Accuracy:OIML III

Division:20kg,30kg

Surface Plate Thickness:8+2mm Checkered Plate

Port of Loading:shanghai, China

Size of truck scale platform:3x6m, 8m, 10m, 12m, 14m, 16m, 18m, 20m, 22m, 24m

Trademark :Sivler lake

Origin:China

HS Code of turck scale:8423891090

Production Capacity:1200PCS /Year


load cell
