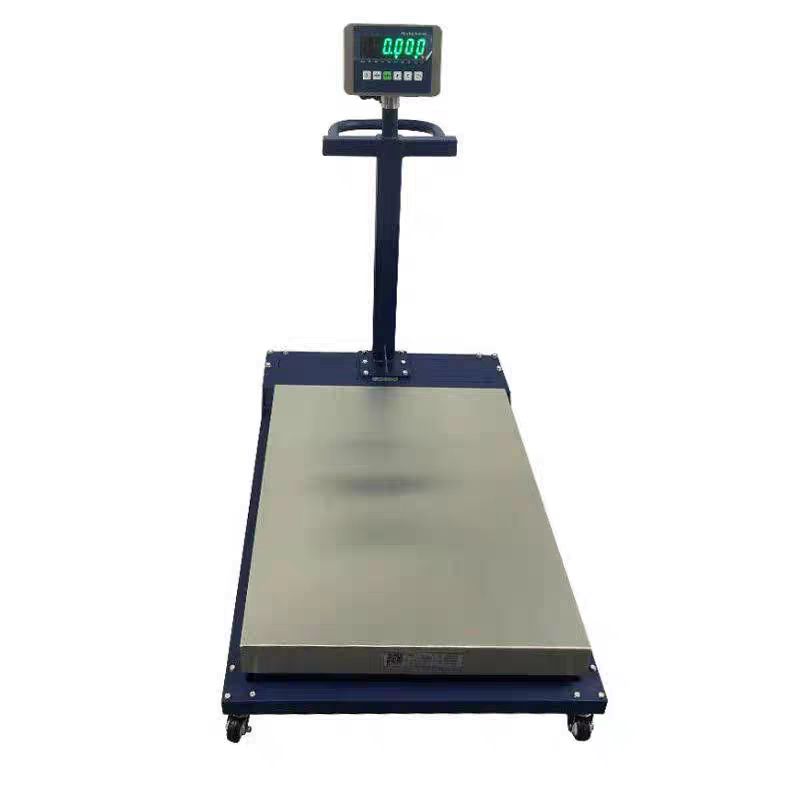

SL-THDW Bench scale with wheels

The advantages of wheeled Bench scales mainly include:

Easy to move

The wheeled design makes it easy to move and suitable for use in different locations, especially for occasions that require frequent handling.

Space saving

Easy to move means no need for a fixed position, and it can be flexibly adjusted according to needs, saving space.

Improve efficiency

Quick movement reduces handling time, especially suitable for scenes that require frequent weighing, such as logistics and warehousing.

Strong stability

The wheels with brakes ensure that the equipment is stable during weighing and ensure measurement accuracy.

Versatility

Applicable to a variety of scenarios, such as factories, warehouses, supermarkets, etc., to meet different needs.

Good durability

Usually made of sturdy materials, it can withstand heavy objects and frequent use, and extend its service life.

Easy to operate

Simple design, easy to operate, suitable for all types of users.

High safety

The wheels with brakes prevent the equipment from sliding and reduce the risk of accidents.

Overview
Specifications
Accessories
Literature

Desription:

SL-THDW/THDWS Series bench scale with wheels is welded with square tube in mild steel or stainless steel. Max Capacity is up to 600kg due to its solid contrucation and high strength. It’s widely use in many occasions. For 400x500mm and 460x600mm dimensions, the stretching pan is optional. Load cell protector is available as option, with which the protective grade of scale will be improved further.

Too meet different weighing requirements, the scale body of this series is designed with minimum size of 300x300mm and maximum dimension of 800x800mm. With soild structure and high strength, It is welded by square tube in carbon or stainless steel, so as to weigh a maximal weight of 1000kg. Load cell protector can be selected to improve the protection grade.

As a professional bench scale manufacturer and supplier in China, Our company offers truck scale, platform scale, indicator, load cell , crane scale and so on

Technical Data

Accuracy Grade		Ⅲ
Weighing Range n		6kg～1000kg
Working Temperatrure	Weighing Indicator	-20～+40℃
	Scale and Load cell	-30～+50℃
Power Supply	SL-AS131SS	100-240VAC 50/60Hz Wide voltaga input/Nickel metal hydride rechargeable batteries(option)
	SL-AS135	DS12V Adaptor nickel metal hydride rechangeable battery(option)
Protective Grade		Scale Body IP65 Indicator SL-AS135 IP65,Indicator SL-AS131-SS IP65
Load cell		L6N/L6E/L6E3/L6G/L6W/L6F/B6F
Relative Humidity		≤95%(Free of Moisture Condensation)

Specifications

Model	Dimension	Capaciy
Model	Dimension	6kg	15kg	30kg	60kg	150kg	300kg	600kg
SL-THDW/THDWS3030	300x400	√	√	√	√
SL-THDW/THDWS4040	400x400			√	√	√
SL-THDW/THDWS5050	500x500				√	√
SL-THDW/THDWS6060	600x600				√	√	√
SL-THDW/THDWS4050	400x500				√	√
SL-THDW/THDWS4660	400x600				√	√	√
SL-TH/THS6080	600x800				√	√	√	√
Division e=(g)		2g	5g	10g	20g	50g	100g	200g

Functional Features :

Excellent and Flexible structure

With guard rail and bending column,easy to carry

SL-TH	Top cap: Stainless Steel 304 Platform of scale: Carbon steel
	Top cap: Stainless Steel 201 Platform of scale: Carbon steel
Sl-THS	Top cap: Stainless Steel 304 Platform of scale: Steel 304
	Top cap: Stainless Steel 201 Platform of scale: Steel 201

zemic load cell L6E L6E3 , LOAD CELL L6G

L6W , L6F

SL-THDW Bench scale with wheels PDF Download
