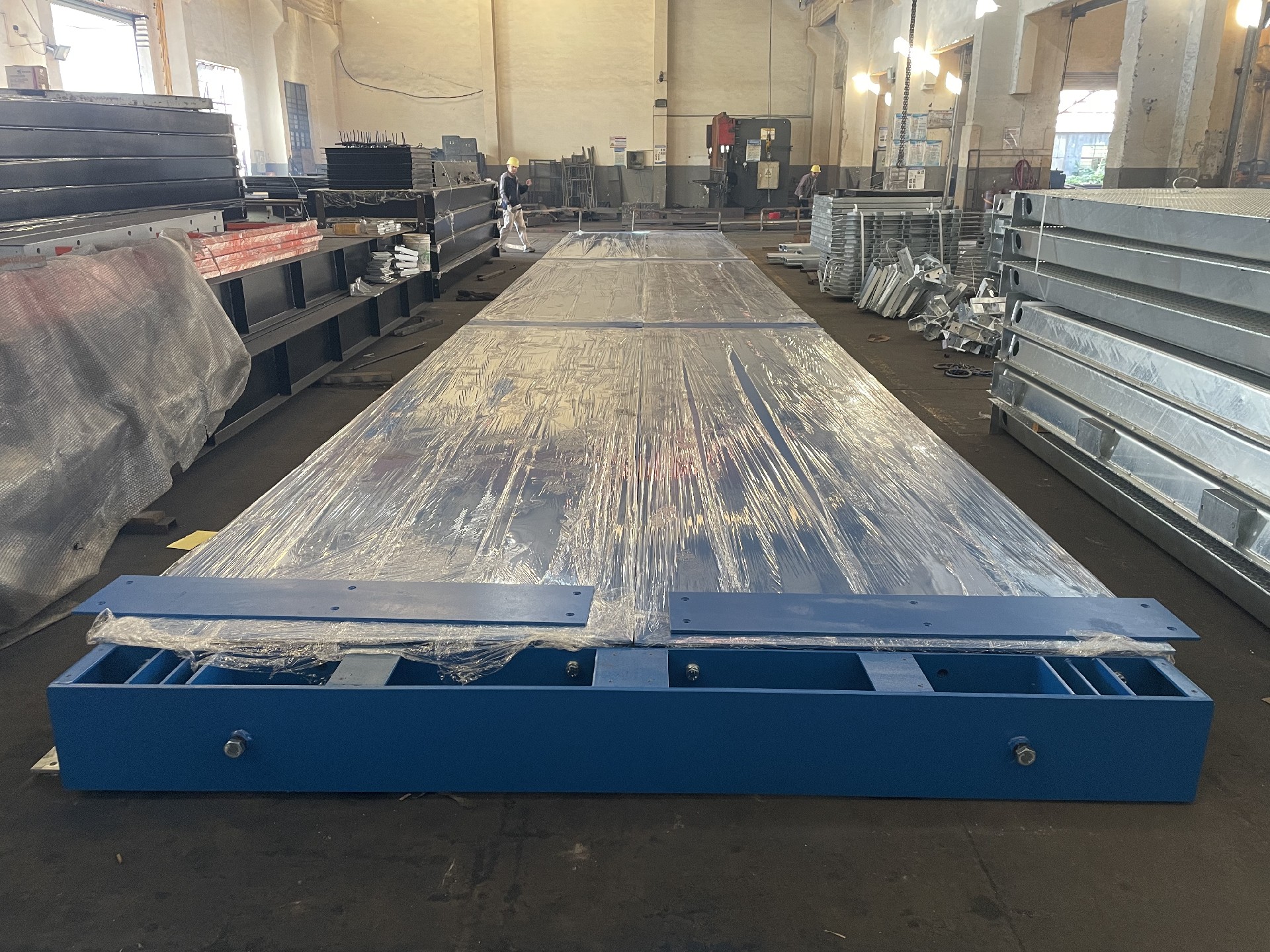

SCS-MU3 Modular Weighbridges are engineered to address all the challenges mentioned above. Our steel weighbridges feature a revolutionary structural design, delivering superior strength, enhanced reliability, and significantly faster installation compared to traditional systems.

‌What advantages do our SCS-M weighbridges offer?‌

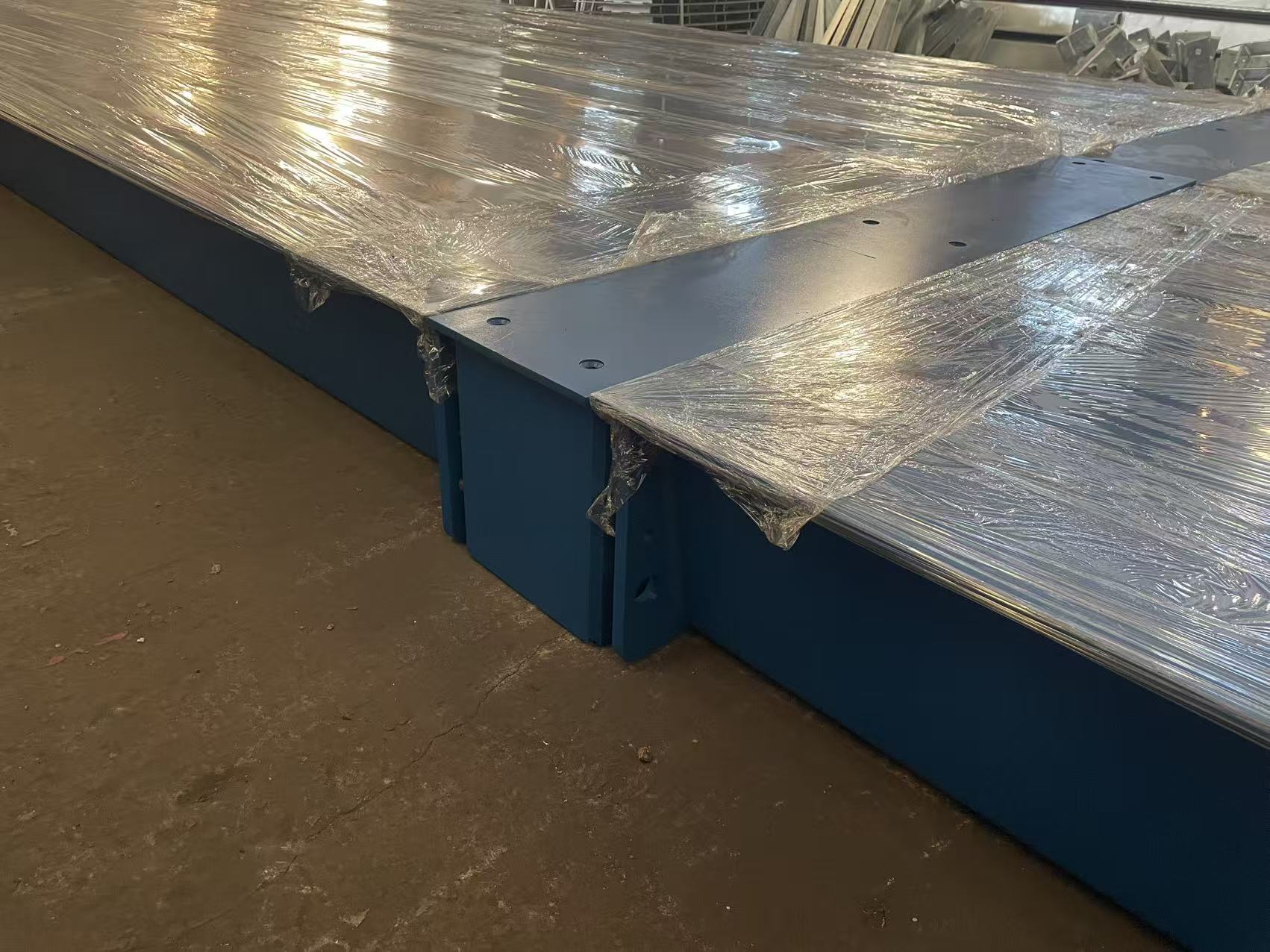

‌(1). Truly modular design, unmatched interchangeability‌

With only three types of modules, we can tailor a weighbridge to your exact specifications, available in lengths of 3x8m, 10m, 12m, 14m, 16m, 18m, 20m, 22m, or 24m. Need to expand? Simply add modules to increase length cost-effectively—e.g., upgrade from 12m to 18m or from 18m to 22m with just three additional pieces, saving you substantial expenses.

‌(2). Maximized container efficiency‌

The structure is optimized for 40ft container dimensions, ensuring space utilization is pushed to its limits. A single container can accommodate three sets of 3x18m weighbridges (80t capacity, axle load 25t), streamlining logistics and reducing shipping costs.

‌(3). Unbeatable delivery timelines‌

Thanks to the modular design, we maintain ample inventory of ready-to-ship modules. This enables rapid delivery: typically, two sets of 18x3m weighbridges can be dispatched in 10 days. For larger, stable orders, delivery times are even shorter.

‌(4). Robust construction for heavy-duty applications‌

Each module features a full checker plate deck (8+2mm thickness) and eight 6mm thick U-beams per part. Advanced welding techniques—CO2 mixed with AR protection welding and automatic union melt welding—ensure each U-beam is fully sealed. The CO2 welding process employs standard fillet weld with no discontinuities, boasting a weld leg of at least 8mm. This design guarantees a safe load exceeding 130% full scale and can endure up to 1.5 million weighments.

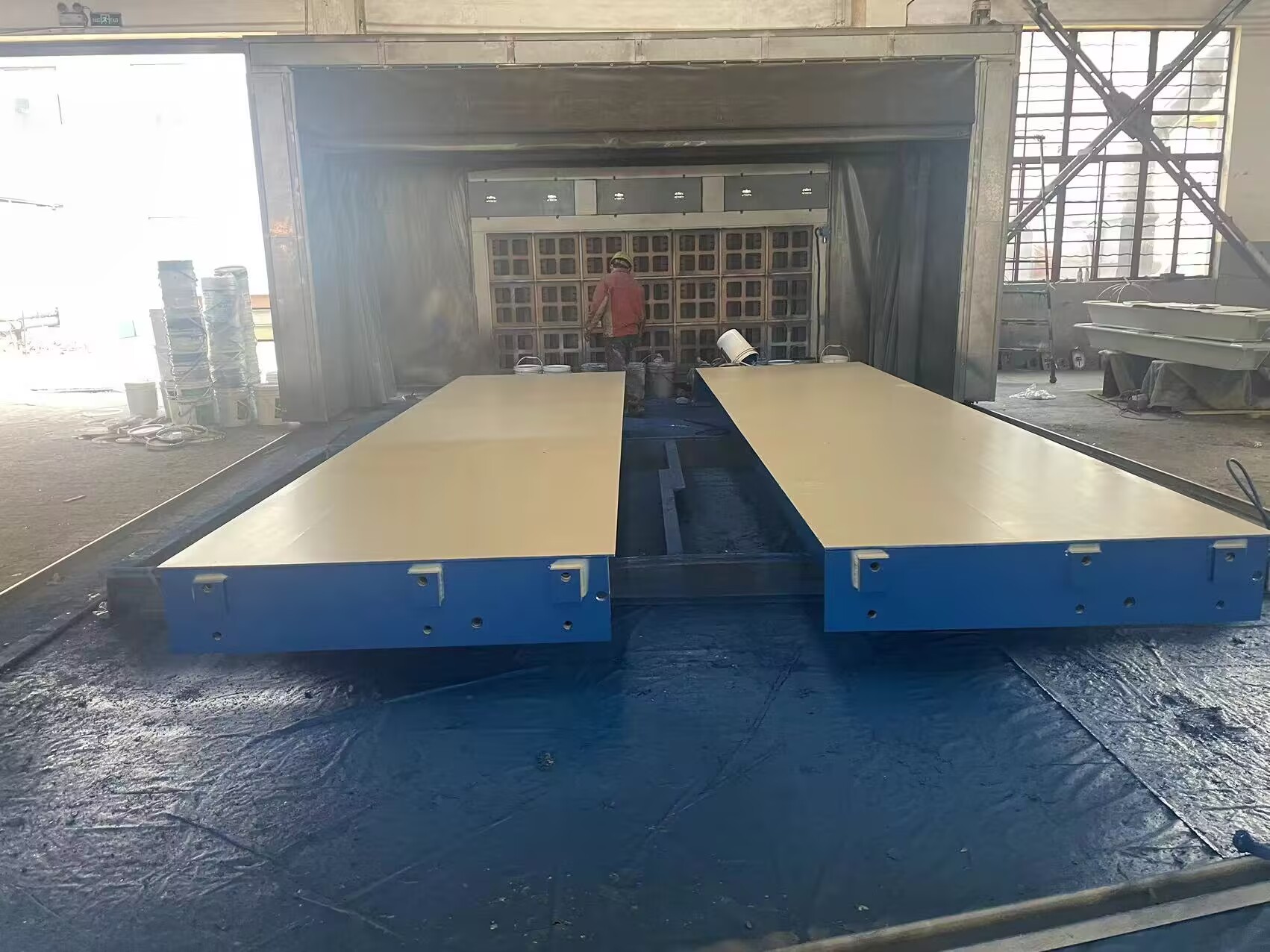

‌(5). Superior corrosion and wear resistance‌

Rust removal via sandblasting meets the Sa2.5 standard (ISO 8501-1), eliminating oxide scale, rust, and oil stains while achieving a surface roughness of 40-75 μm. Special attention is given to edges, corners, and weld seams to prevent residual rust. The primer is an epoxy zinc-rich layer with a effective film thickness of 40-60 microns, topped by two layers of acrylic polyurethane paint (40-60 microns each), ensuring long-lasting protection.

‌(6). Swift and cost-effective installation, even in tight spaces‌

The SCS-MU3 weighbridge is designed for ease of assembly. No need to turn over the bridges during installation—just two people can complete a full 18x3m set in about 5 hours. Even without a crane, installation is seamless using a forklift, making it ideal for constrained sites.

‌(7). Easy maintenance access‌

Removable section covers provide hassle-free access for servicing and upkeep, minimizing downtime and ensuring operational continuity.
