I Beam Electronic vehicle scale road truck weighbridge


The Impact-Resistant Industrial Weighing Equipment is built with a full-steel frame and high-strength I-beams, providing exceptional resistance to bending and deformation under extreme loads. This design effectively withstands concentrated and impact loads, ensuring accurate measurements even in dynamic operational conditions. The straightforward structural layout simplifies installation and maintenance, while the robust steel frame, when treated with anti-corrosion coatings, resists weathering and maintains performance in diverse environmental settings. Its lightweight design enhances portability, allowing for flexible deployment in temporary or semi-permanent sites across industries.

  • Overview
  • Specifications
  • Accessories
  • Literature

SL-SPG I-Beam Truck Scale: Precision Engineering for Heavy-Duty Applications

I Beam Electronic vehicle scale road truck weighbridge

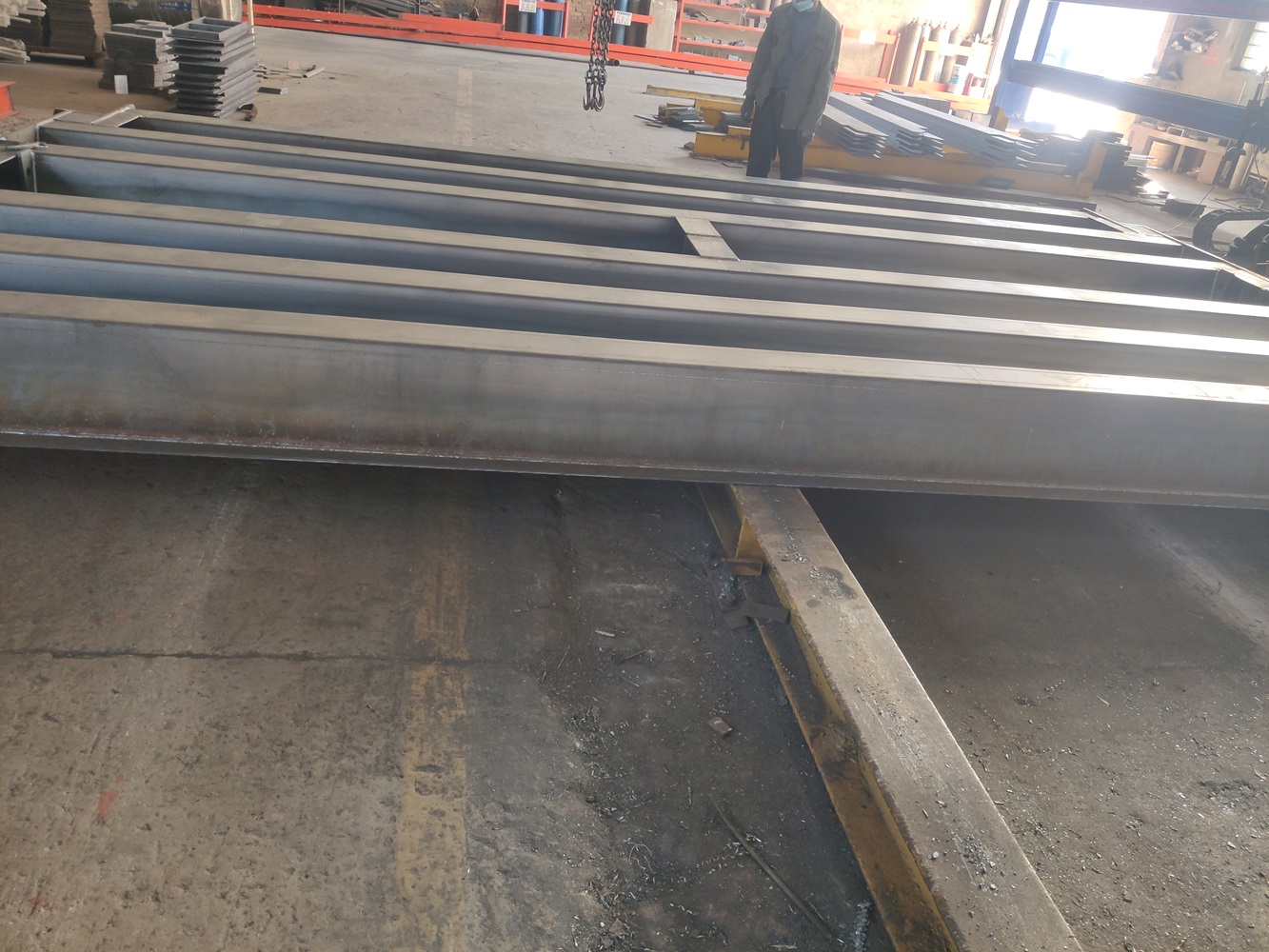

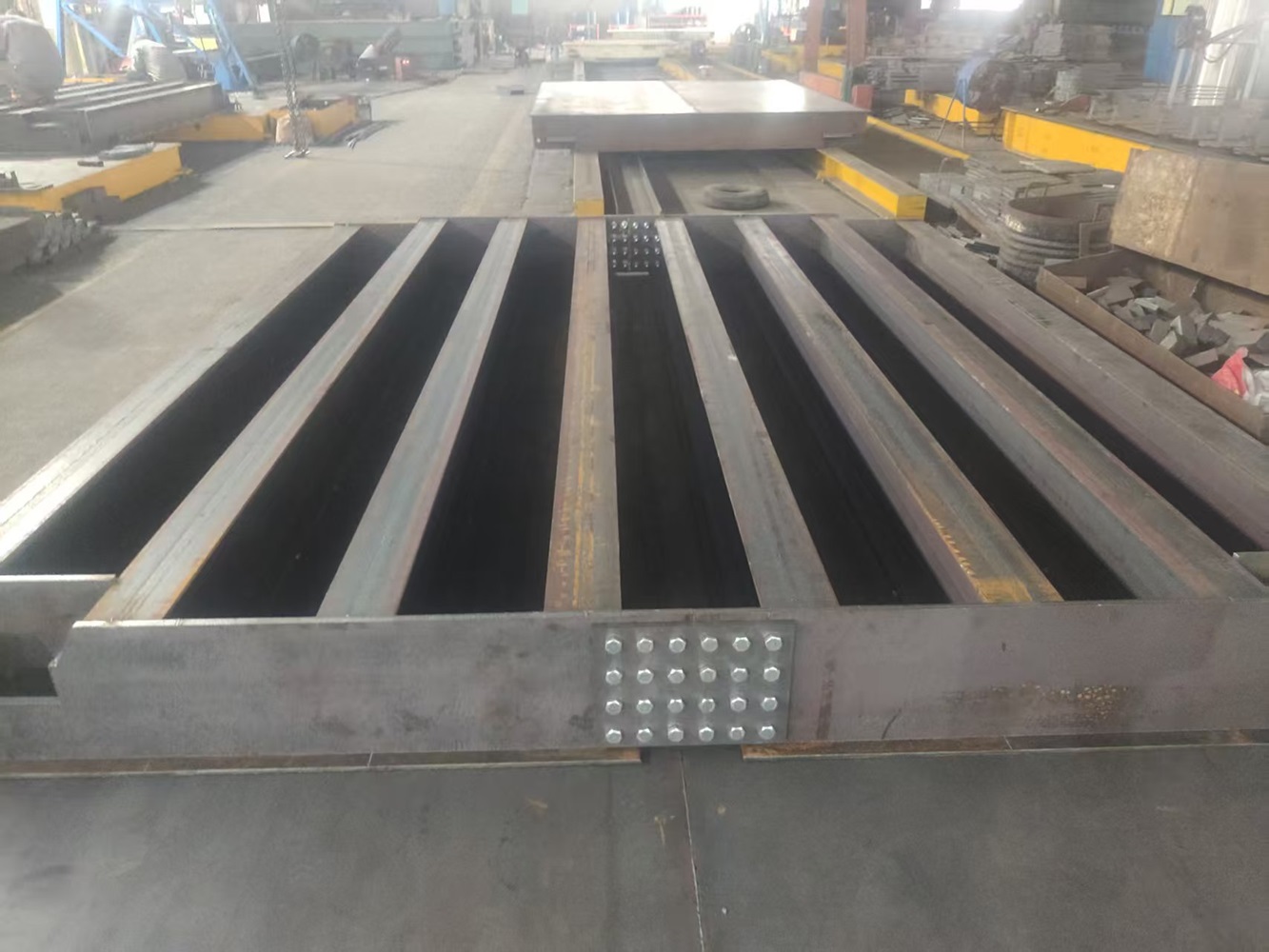

The SL-SPG I-Beam weigh bridge is a robust solution for industrial and commercial vehicle weighing, designed with high-strength I-beam construction to ensure durability and accuracy. Ideal for trucks, trailers, and heavy machinery, this scale features:

  • High-Load Capacity‌: Engineered to handle extreme weights with precision.

  • I-Beam Structure‌: Enhanced rigidity and stability for long-term use.

  • Advanced Sensing Technology‌: Utilizes strain gauge sensors for accurate weight measurement.

  • User-Friendly Interface‌: Digital display with intuitive controls for efficient operation.

  • Durable Design‌: Built to withstand harsh environments and daily wear.

Why Choose the SL-SPG I-Beam weigh bridge Truck Scale?

  • Reliability‌: Tested under extreme conditions for consistent performance.

  • Efficiency‌: Reduces weighing time with fast, accurate readings.

  • Customization‌: Available in multiple configurations to fit your operational needs.

  • Global Compliance‌: Meets international standards for vehicle scales.

Perfect for‌:

  • Logistics and transportation companies

  • Construction and mining operations

  • Waste management and recycling centers

  • Heavy-duty manufacturing facilities

Enhance Your Operations‌:
The SL-SPG I-Beam Truck Scale combines strength, precision, and durability, making it a top choice for businesses requiring reliable vehicle weighing solutions.



Test Data and Specifications

Based on rigorous testing, the following models demonstrate reliable performance under specified axle

 loads and platform dimensions:

  Axle load 20t(80t)

 Axle 30t (100t)

 Axle 40t (120t)

 Axle 50t (150t)

 Axle 60t (200t)

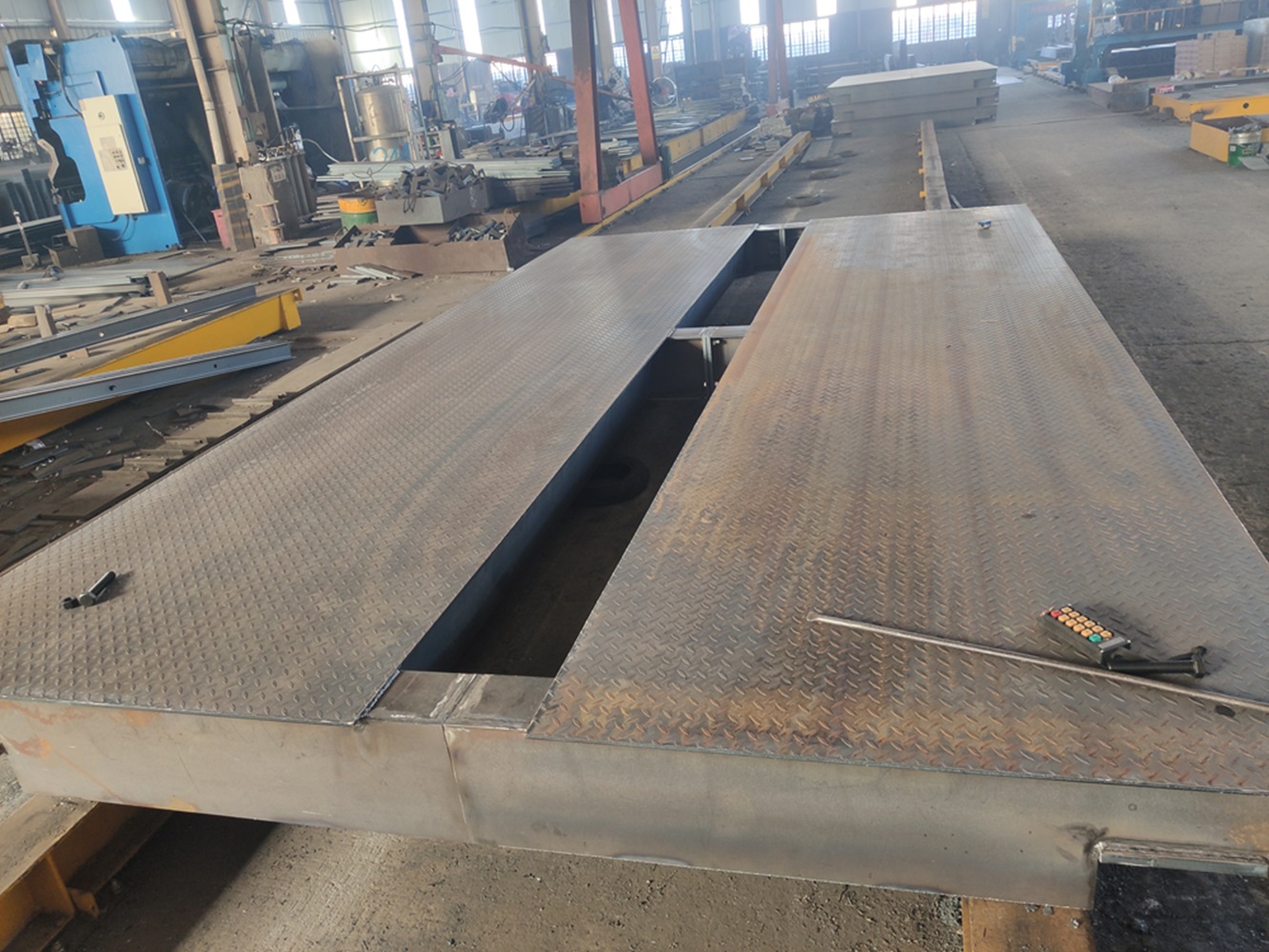

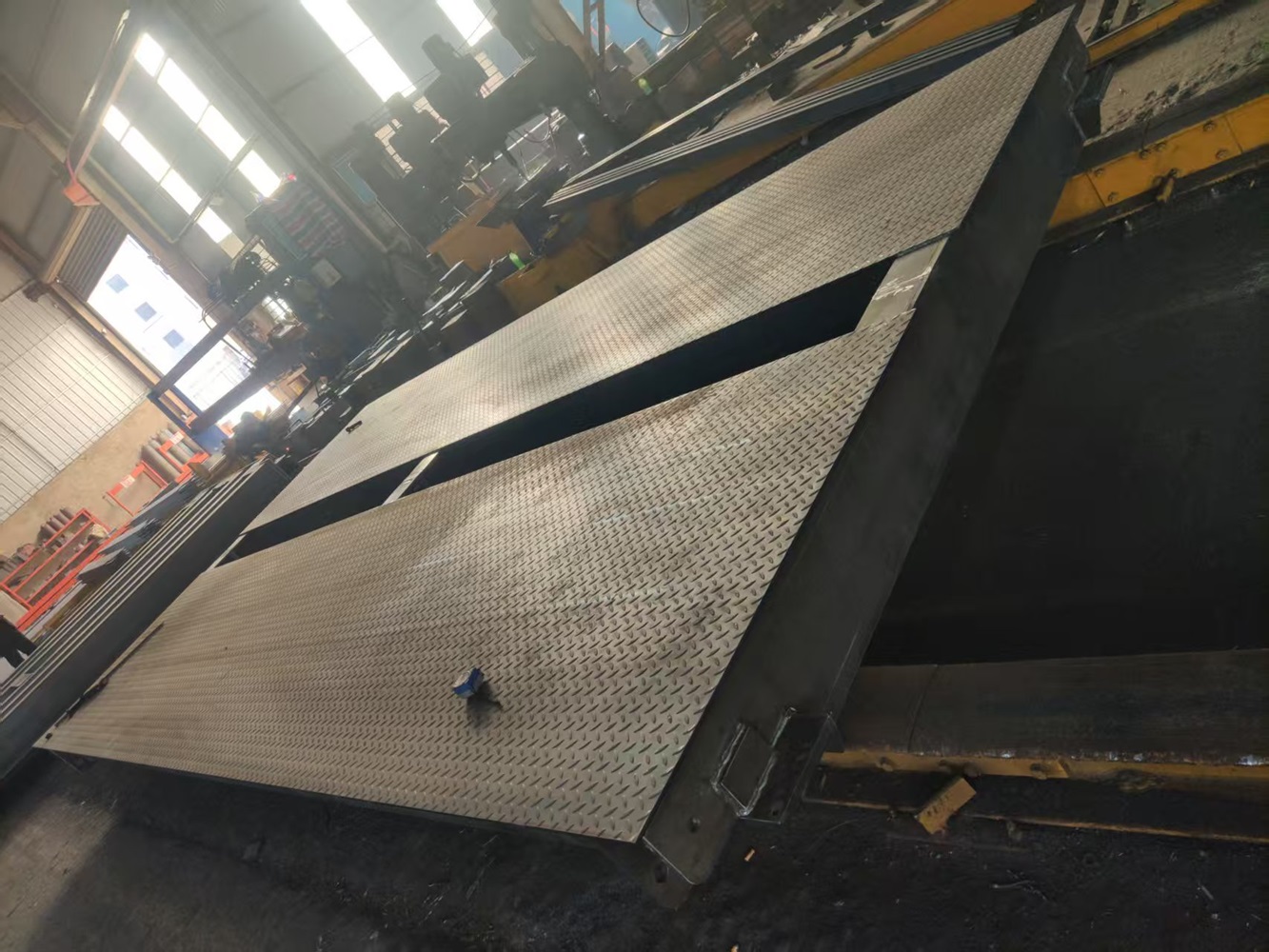

   Top plate:8mm chekcered plate

 Top plate:10mm chekcered plate

 Top plate:12mm chekcered plate

Top plate:14mm chekcered plate

Top plate:16mm chekcered plate

· I-Beam Model‌:27B

· Height: 270mm

· Flange Width: 124mm

· Web Thickness: 10mm

· I-Beam Model‌:27B

· Height: 270mm

· Flange Width: 124mm

· Web Thickness: 10mm

· I-Beam Model‌:30B

· Height: 300mm

· Flange Width: 130mm

· Web Thickness: 11.5mm



· I-Beam Model‌:30B

· Height: 300mm

· Flange Width: 130mm

· Web Thickness: 11.5mm

· I-Beam Model‌:32B

· Height: 320mm

· Flange Width: 134mm

· Web Thickness: 12.5mm



Ending plate :16mm

Ending plate :18mm

Ending plate :20mm

Ending plate :22mm

Ending plate :24mm

Sandblasting

 Sandblasting

 Sandblasting

 Sandblasting

 Sandblasting

  Painting:120mμ

  Painting:120mμ

 Painting:120mμ

  Painting:120mμ


 Load cell:30t

 Load cell:30t

 Load cell:30t/40t

 Load cell :40/50t


Junction box with lighting protection


Load cell Brand:ZEMIC,HMB,SILVER LAKE ,YAOHUA,KELI,FLITEC,AVERY,CAS AND SO ON


Weighing indicator:YAOHUA,SILVER LAKE ,KELI AND other brand


Analog/Digital


Certification:ISO9001,CE,ISO10041


Working environment temp -30~+70;Safe overload 130% ;

Operating humidity RH 20-90%
