The VTS201 containerized Truck Scale China are the newest products which is suitable for container shipment. The scale is robotically welded, machine-fixtured and has the highest quality paint finish available in the industry. These scales consists of a state-of-the-art orthotropic deck and hermetically sealed stainless steel load cells (RC3 analog load cell) and an intelligent weighing terminal. (other brand load cell fit for VTS201 truck scale too , for example HMB , ZEMIC Flintec Rc3or Rc3d load cell for truck scale, MT PDX LOADCELL).
This robust scale is ideal for users who require long-lasting weighbridges for moderate to heavy traffic and axle loads.
Civil Engineering packages are also available with all of our weighbridges.

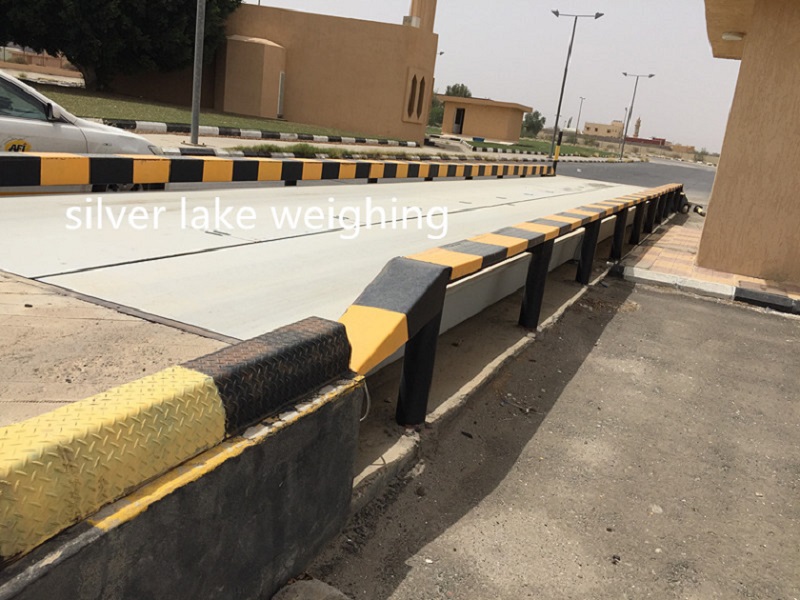

The Weighbridge with U profile cuts down on space and cost by using a shorter approach area.
With a wide variety of capacities and sizes, up to 120 tonnes, this weighbridge can handle a range of trucks and configurations
- Overview
- Specifications
- Accessories
- Literature
1.OVERVIEW
VTS201 Truck scale china is similar with METLER TOLEDO modular weighbrige
The VTS201steel deck weighbridge China is a high capacity truck scale designed for heavy duty applications and big Axle loads For example:Mine ,cement factory,Port.
The VTS201 containerized Truck Scale are the newest products which is suitable for container shipment. The scale is robotically welded, machine-fixtured and has the highest quality paint finish available in the industry. These scales consists of a state-of-the-art orthotropic deck and hermetically sealed stainless steel load cells (RC3 analog load cell) and an intelligent weighing terminal. (other brand load cell fit for VTS201 truck scale too , for example HMB , ZEMIC).

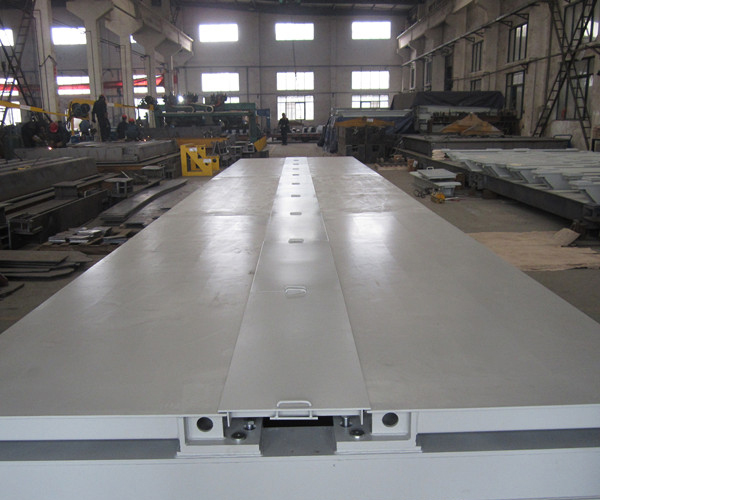

The VTS201 is designed to optimize the state of the art orthotropic design to fulfill two important goals; to accurately weigh on-the-road trucks under medium to heavy traffic conditions and to reduce your long-term service and maintenance costs.

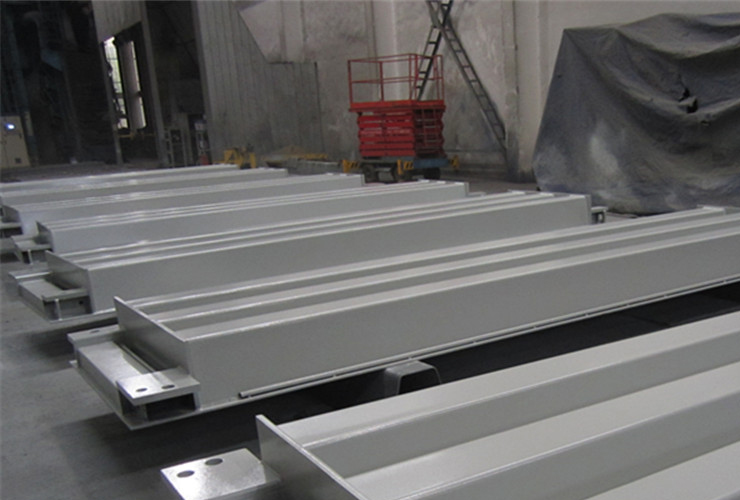

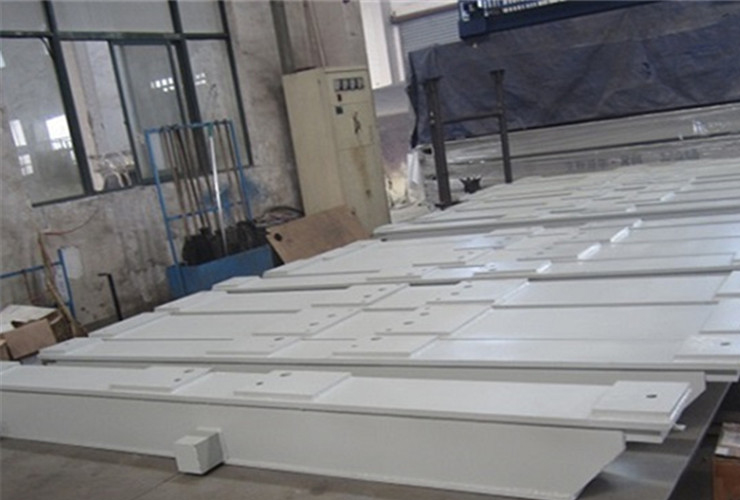

The entire weighing system is built on high-accuracy and good working reliability. The analog system provides weighing accuracy. The VTS201 are designed to be transported in a standard sea container or on a flatbed truck without the added expense of a wide-load permit and extra safety precautions such as flashing lights and escort vehicles. The scale can also be disassembled and transported to another site, provided that there is an adequate foundation and the installation is supervised by technician trained by SILVERLAKE. These scales are ideally suited for above-ground mounting where debris typically accumulates and must be periodically cleaned to insure that these materials do not effect the scale operation like that of many competitive models which are not so easily cleaned.
The entire weighing system also can be equipped with peripherals like printers, scoreboards, PCs and with truck weighing software to meet the customer’s specific requirements.
Note: all measures in this document refer to Scientific (SI) Units, otherwise referred to as metric. Other dimensions are for reference.
2.WORKING CONDITION
·Environment Humidity: 95 Percent
·Operation Voltage: 87 to 264 VAC , 49 to 61 Hz
·Temperature, For Load Cell: -30C TO 65C, For Indicator: -10C to +45C
Changzhou silverlake is a truck scale,weighbridge manufacturers,made high quality truck scale and weighbridge in china
VTS201 Truck Scale China
Functional features of VTS201 Truck scale china
1.digital display gross weight, net weight, tare weight
2.Dynamic, underload and overload status indication
3.Automatic zero tracking, automatic peeling and automatic clear skin
4.keyboard settings, dual-range calibration function
5.number, tare weight, number storage, sub-total, total cumulative
6.data transmission, query and print
7.support manual and automatic adjustment Angle difference
8.Chinese display with a navigation message
9.three kinds of truck weighing application mode
10.instrument parameter settings with password protection
11.Chinese, English, numbers three input method
12.Built-in real time clock
13.unattended, Network Monitoring
14.integrated sensor accuracy class C3
15.stainless steel standard sensors has good rust waterproof performance
16.connect computer, big screen, the realization of network
17.Origin:China
18:Accuracy:OIML C3
19:Scale Structure:U-Type Steel

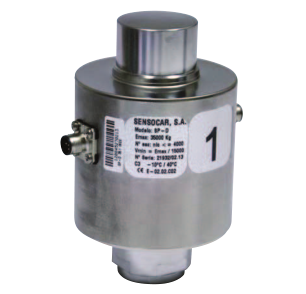

LOADCELL OF VTS201 Truck Scale China SLSDPC
Capacity: 10t,15 ,20 ,25 ,30 ,35 ,40,50 t
DIGITAL Compression load cell
Complies with ≤ 4000 divisions CE OIML-R60
Fully welded. Protected against humidity IP-69K (EN DIN 40050-9)
Manufactured in Stainless steel
Software corner adjustement
IP-68 Connectors
Available, cable with metallic cover

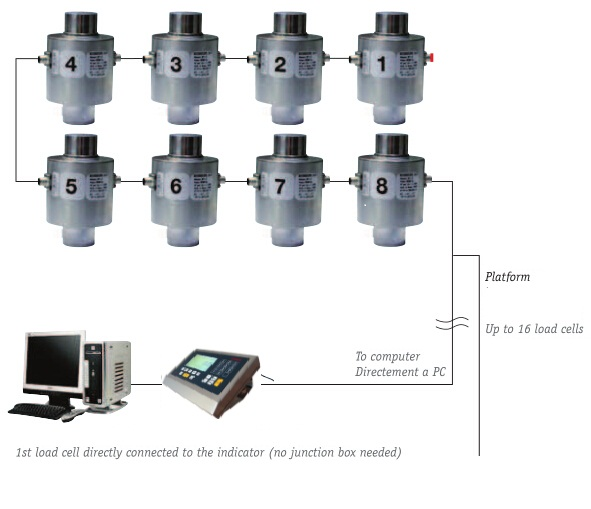

1st load cell directly connected to the indicator (No junction box needed)
Technical data of Load cell SL-SD-PC
| Accuracy class: | C3 TO C4 |
| Vmin | Emax 15000 |
| Excitation | Voltage 8 15 V DC |
| Current consumption | 35 mA |
| Transmisión speed | 100 kHz Max |
| Conversions persecond | 40 s 1 |
| Internal resolution | 24 bits |
| Temperature Compensation | -10 TO 40C |
| Temperature limits | -30 TO +70C |
| Insulation resistance | Above 5000 |

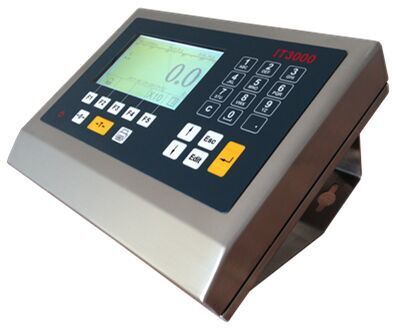

FLINTEC IT3000
SLW2000 Weighing indicator For Truck Scale VTS201 CHINA
Characteristics:
(Static weighing, Dynamic weighing ( the latest dynamic algorithm)
(1) SL-T3000232 Analog indicator, SLW2000D digital indicator
(2) Connect with FLintec RD3 analog load cell or RC3D digital load cell
HBM C16i, Keli digital load cell, ZEMIC digital load cell
(3) Load cell communication isolation and electrical surge protector
(4) Calibrate angle deflection automatically
(5) Tree-like structure menu
(6) Can store 19000 weighing data
(7) 5 reports printing
(8) Optional interface RS232 and RS485
Junction Box For truck scale
1. Junction box JB08 is made of cast aluminum, with plastic-sprayed.
2. Easy to assemble and calibrate, high reliability.
3. Fully encapsulated, water proof, moisture proof and lightning protection.
4. Surge protection.
5. Sensitivity matched adjusting method.
6. Operating temperature: -40C TO 85C
